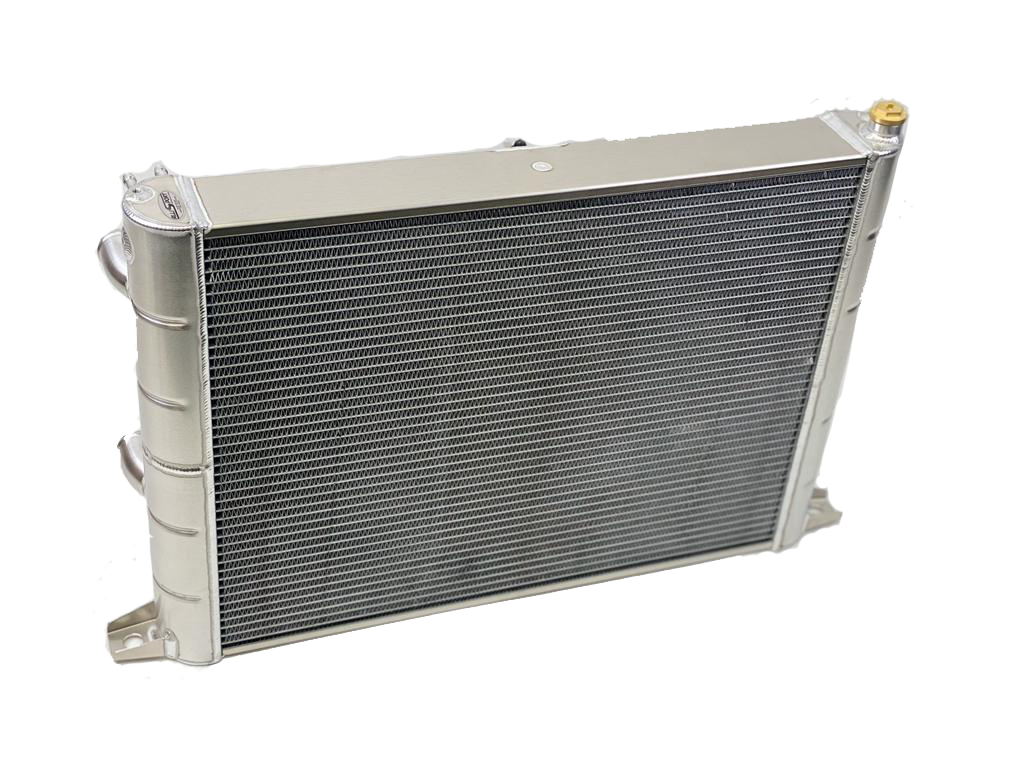

An uprated high efficiency radiator designed for Defender conversions such as LS3 and LT1
Specific mounts for Td5 & Tdci chassis, please see our part number AS196 for earlier chassis
Available with Spal 16″ fan and integral thermostatic switch
Over 40% better cooling than standard copper and brass design, ideal for high output engines or extreme ambient temperatures.
Constructed using our special controlled atmosphere brazed cores and optimum 12 fins per inch (FPI) for maximum cooling in all environments.
Hand built and fully TIG welded in high grade aluminium to resist corrosion.
All pipe connections are swaged for pipe security and our radiators are tested to 30 psi before dispatch. CNC machined 1/2″ bsp filler plug suits original LR plug
Considerably lighter than the copper and brass original fitment, but designed to withstand the rigours of harsh environments likely to be encountered by Land Rovers.
Aluminium radiators are designed primarily for their highly efficient cooling rather than overall longevity
Bespoke radiators also available made to order from 22mm to 100mm thickness and a wide range of threaded oil cooler and water connections.
